Product Summary
The EP3C16F256C8N is a Thermal Resistance. It is provided for a board meeting JEDEC specifications and for a typical board.
Parametrics
Absolute maximum ratings: (1)Supply voltage for internal logic:–0.5V to 1.8V; (2)Supply voltage for output buffers:–0.5V to 3.9V; (3)Supply voltage (analog) for phase-locked loop(PLL) regulator:–0.5V to 3.75V; (4)Supply voltage (digital) for PLL:–0.5V to 1.8V; (5)DC input voltage:–0.5V to 3.95V; (6)DC output current, per pin:–25mA to 40mA; (7)Electrostatic discharge voltage using the human body model:±2000V; (8)Electrostatic discharge voltage using the charged device model:±500V; (9)Storage temperature:–65℃ to 150℃; (10)Operating junction temperature:–40℃ to 125℃.
Features
Features: (1)θJA Still Air:28.5℃/W; (2)θJA 100 ft./min.:25.1℃/W; (3)θJA 200 ft./min.:23.2℃/W; (4)θJA 400 ft./min.:21.7℃/W; (5)θJC:9.1℃/W.

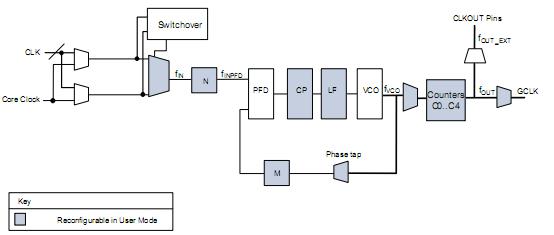

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP3C16F256C8N |
|

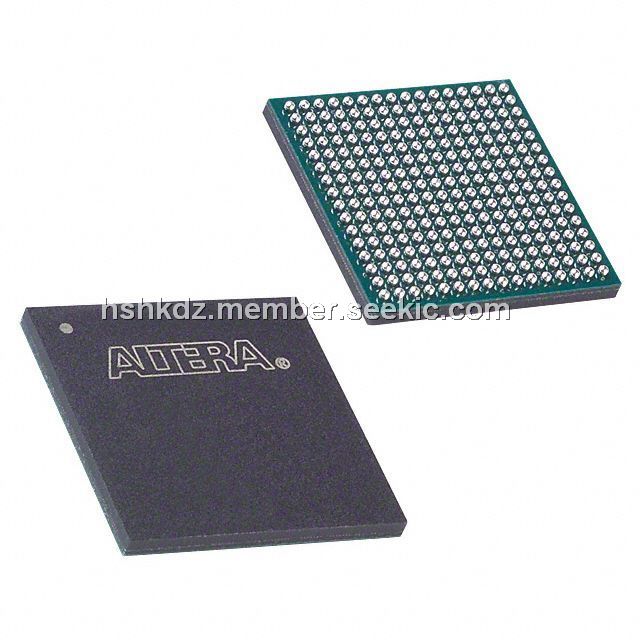

IC CYCLONE III FPGA 16K 256FBGA |
Data Sheet |
|
|
||||||
