Product Summary

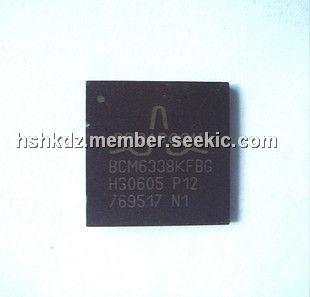

The BCM6338KFBG combines an ADSL2+ transceiver and analog front end (AFE) with a high-performance MIPS32 CPU, a 10/100 Ethernet interface, and a USB 1.1 interface into a single high-performance, costeffective monolithic device. The ADSL2+ transceiver delivers 29 Mbps downstream and 3 Mbps upstream, dual-latency framing, and embedded operations channels for remote management of the customer premises equipment (CPE).
Parametrics
Benefits: (1)High-performance 280DMIPS MIPS32 CPU supports wirespeed bridging and routing and advanced applications such as TR-69 or SNMP-based remote management; (2)Embedded 10/100-Mbps Ethernet MAC with MII and 10/100 Mbps Ethernet PHY interface with Auto-MDIX to; (3)reduce customer support; (4)Concurrent Ethernet and USB 1.1 interfaces enabling simple plug and play connection of multiple PCs and other peripheral devices; (5)Support for industry-standard toolchains and operating systems, including Linux, WinCE, VxWorks, and eCOS; (6)Consistent, field-hardened software platform across all Broadcom CPE gateway devices.
Features
Features: (1)Single-chip ADSL2+ bridge/router solution with seamless, multiuser support of Ethernet and USB home LAN; (2)technologies; (3)G.992.1, G.992.2, G.992.3, G.992.5, and T1.413-compliant ADSL2+ transceiver and AFE with worldwide support for Annexes A, B C, M, and L; (4)Highly optimized MIPS32 CPU with MMU and TLB support; (5)Fully backward-compatible with Broadcom’s existing BCM6345, BCM6335, and BCM6348 software and toolchain; (6)Integrated 10/100 Mbps IEEE 802.3u Ethernet MAC/PHY and USB interfaces; (7)Serial and parallel Flash interfaces with SDRAM support; (8)Extensive on-chip power management, EJTAG, GPIO, UART; (9)17 mm × 17 mm package with 1.0 mm pitch for reduced PCB design complexity.

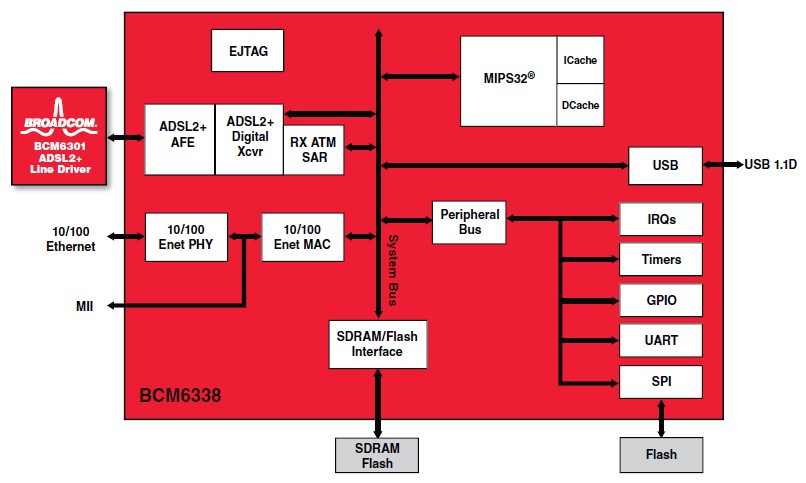

Diagrams
 |
