Product Summary

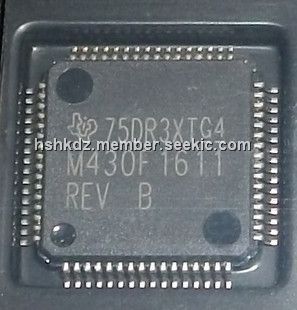

The MSP430F1611IPM is a microcontroller configuration with two built-in 16-bit timers, a fast 12-bit A/D converter, dual 12-bit D/A converter, one or two universal serial synchronous/asynchronous communication interfaces (USART), I2C, DMA, and 48 I/O pins. In addition, the MSP430F1611IPM offers extended RAM addressing for memory-intensive applications and large C-stack requirements. Typical applications include sensor systems, industrial control applications, hand-held meters, etc.
Parametrics
Absolute maximum ratings over operating free-air temperature: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: Unprogrammed device: -55℃ to 150℃; (5)Programmed device: -55℃ to 85℃.
Features
Features: (1)Five Power-Saving Modes; (2)Wake-Up From Standby Mode in Less Than 6 μs; (3)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (4)Three-Channel Internal DMA; (5)12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature; (6)Dual 12-Bit Digital-to-Analog (D/A) Converters With Synchronization; (7)16-Bit Timer_A With Three Capture/Compare Registers; (8)16-Bit Timer_B With Three or Seven Capture/Compare-With-Shadow Registers; (9)On-Chip Comparator; (10)Serial Communication Interface (USART0), Functions as Asynchronous UART or Synchronous SPI or I2CTM Interface.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430F1611IPM |
Texas Instruments |
16-bit Microcontrollers (MCU) 16-bit Ultra-Lo-Pwr |
Data Sheet |
|
|
||||||||||||
|
MSP430F1611IPMR |
Texas Instruments |
16-bit Microcontrollers (MCU) 16-bit Ultra-Lo-Pwr |
Data Sheet |
|
|
||||||||||||
