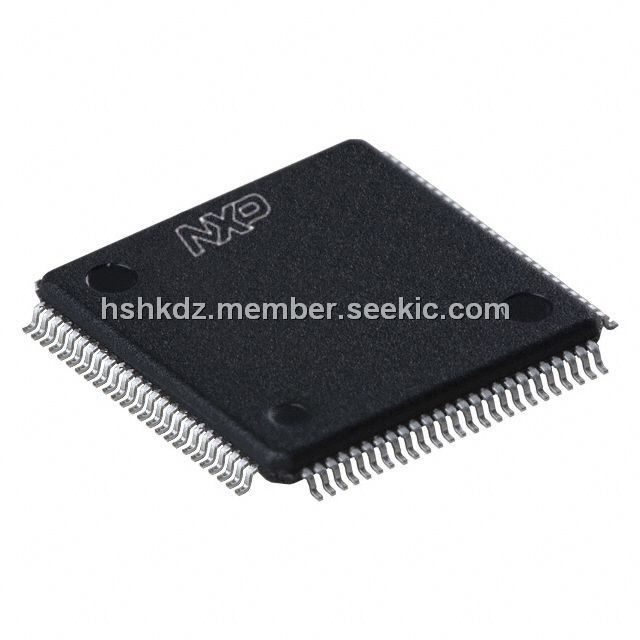

LPC2368FBD100

Product Summary

The LPC2368FBD100 microcontroller is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with up to 512 kB of embedded high-speed flash memory. It is ideal for multi-purpose serial communication applications. This device incorporates a 10/100 Ethernet Media Access Controller (MAC), USB full speed device with 4 kB Endpoint RAM, four UARTs, two CAN channels, an SPI interface, two Synchronous Serial Ports (SSP), three I2C interfaces, and an I2S interface.

Parametrics

Absolute maximum rating: (1)VDD, supply voltage (core and external rail): -0.5 to +3.6 V; (2)VDDA, analog 3.3 V pad supply voltage: -0.5 to +4.6 V; (3)Vi(VBAT), input voltage on pin VBAT for the RTC: -0.5 to +4.6 V; (4)Vi(VREF), input voltage on pin VREF:-0.5 to +4.6 V; (5)VIA, analog input voltage on ADC related pins:-0.5 +5.1 V; (6)VI, input voltage at 5 V tolerant I/O pins; only valid when the VDD supply voltage is; (7)present:-0.5 to +6.0 V; other I/O pins:-0.5 to VDD + 0.5 V; (8)IDD, supply current per supply pin:100 mA max; (9)ISS, ground current per ground pin:100 mA max; (10)Tstg, storage temperature:-40 to +125℃; (11)Ptot(pack), total power dissipation (per package) based on package heat transfer, not device power consumption:1.5w; (12)Vesd, electrostatic discharge voltage: human body model all pins: 2 V.

Features

Features: (1)ARM7TDMI-S processor, running at up to 72 MHz; (2)Up to 512 kB on-chip Flash Program Memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access; (3)8/32 kB of SRAM on the ARM local bus for high performance CPU access; (4)16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM; (5)8 kB SRAM for general purpose DMA use also accessible by the USB; (6)Dual AHB system that provides for simultaneous Ethernet DMA, USB DMA, and; (7)program execution from on-chip Flash with no contention between those functions. A bus bridge allows the Ethernet DMA to access the other AHB subsystem; (8)Advanced Vectored Interrupt Controller, supporting up to 32 vectored interrupts; (9)General Purpose AHB DMA controller (GPDMA) that can be used with the SSP serial interfaces, the I2S port, and the SD/MMC card port, as well as for memory-to-memory transfers; (10)Secure Digital (SD) / MultiMediaCard (MMC) memory card interface(LPC2368 only).

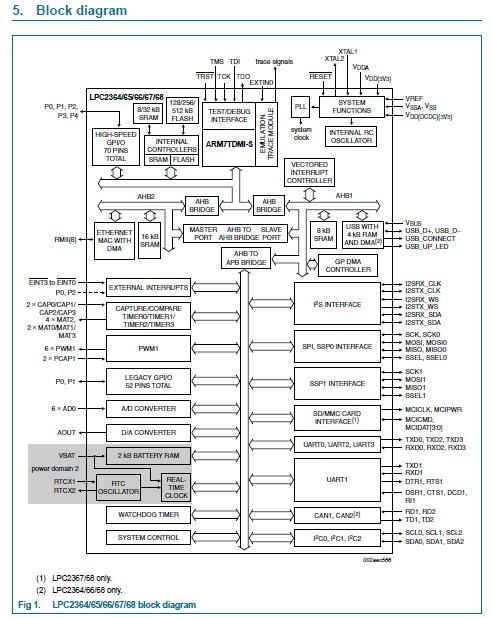

Diagrams
