Product Summary
The STM8S105C6T6 access line 8-bit microcontrollers offer from 16 to 32 Kbytes Flash program memory, plus integrated true data EEPROM. They are referred to as medium-density devices in the STM8S microcontroller family reference manual (RM0016).
Parametrics
Absolute maximum ratings: (1)VDDx - VSS, Supply voltage (including VDDA and VDDIO): -0.3 to 6.5 V; (2)VIN, Input voltage on true open drain pins (PE1, PE2): VSS - 0.3 to 6.5v; (3)Input voltage on any other pin: VSS - 0.3 to VDD + 0.3; (4)|VDDx -VDD|, Variations between different power pins: 50 mV max; (5)|VSSx - VSS|, Variations between all the different ground pins: 50 mV max.
Features
Features: (1)16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline; (2)Extended instruction set; (3)Medium-density Flash/EEPROM: Program memory up to 32 Kbytes; data retention 20 years at 55℃ after 10 kcycles; Data memory up to 1 Kbytes true data EEPROM; endurance 300 kcycles; (4)RAM: Up to 2 Kbytes; (5)2.95 V to 5.5 V operating voltage; (6)Flexible clock control, 4 master clock sources: Low power crystal resonator oscillator; External clock input; Internal, user-trimmable 16 MHz RC; Internal low power 128 kHz RC; (7)Clock security system with clock monitor; (8)Power management: Low power modes (wait, active-halt, halt); Switch-off peripheral clocks individually.

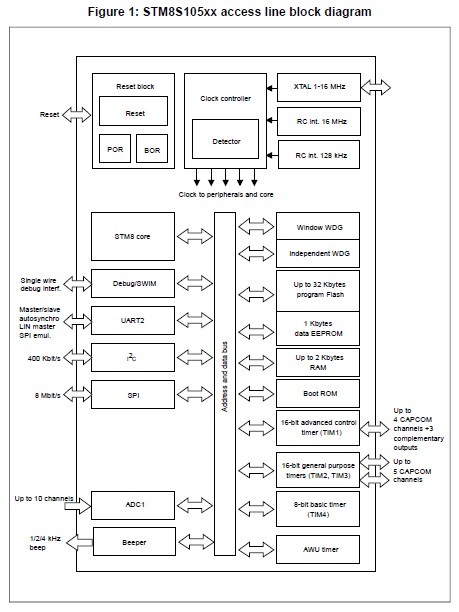

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8S105C6T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) Access Line 16 MHz 8-bit MCU 32 Kbyt |
Data Sheet |
|
|
||||||||||||
|
STM8S105C6T6TR |
STMicroelectronics |
8-bit Microcontrollers (MCU) Access line MCU 8Kbyt 32 MHz |
Data Sheet |
|
|
||||||||||||
