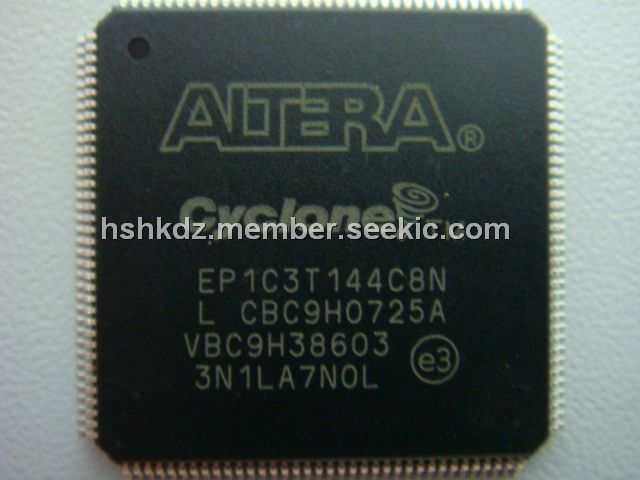

Product Summary

The EP1C3T144C8N is a field programmable gate array. It is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. Its package is TQFP144.

Parametrics

Absolute maximum ratings: (1)VI, DC input voltage: –0.5 to 4.6 V; (2)IOUT, DC output current, per pin: –25 to 25 mA; (3)TSTG, Storage temperature No bias: –65 to 150 ℃; (4)TAMB, Ambient temperature Under bias: –65 to 135 ℃; (5)TJ, Junction temperature BGA packages under bias: 135 ℃ max.

Features

Features: (1)2,910 to 20,060 LEs; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66-MHz, 32-bit PCI standard; (6)Low speed (311 Mbps) LVDS I/O support; (7)Up to two PLLs per device provide clock multiplication and phase shifting; (8)Up to eight global clock lines with six clock resources available per logic array block (LAB) row; (9)Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM.

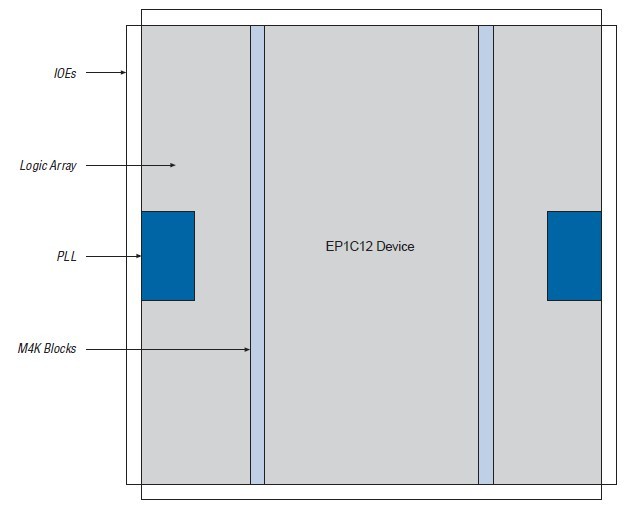

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP1C3T144C8N
EP1C3T144C8N

IC CYCLONE FPGA 2910 LE 144-TQFP
Data Sheet
0-1: $7.38
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP1C12
EP1C12
Other

Data Sheet
Negotiable
EP1C12F256C6
EP1C12F256C6

IC CYCLONE FPGA 12K LE 256-FBGA
Data Sheet
0-90: $36.96
EP1C12F256C6N
EP1C12F256C6N

IC CYCLONE FPGA 12K LE 256-FBGA
Data Sheet
0-1: $33.60
EP1C12F256C7
EP1C12F256C7

IC CYCLONE FPGA 12K LE 256-FBGA
Data Sheet
0-1: $29.57
EP1C12F256C7N
EP1C12F256C7N

IC CYCLONE FPGA 12K LE 256-FBGA
Data Sheet
0-1: $26.88
EP1C12F256C8
EP1C12F256C8

IC CYCLONE FPGA 12K LE 256-FBGA
Data Sheet
0-1: $24.62
